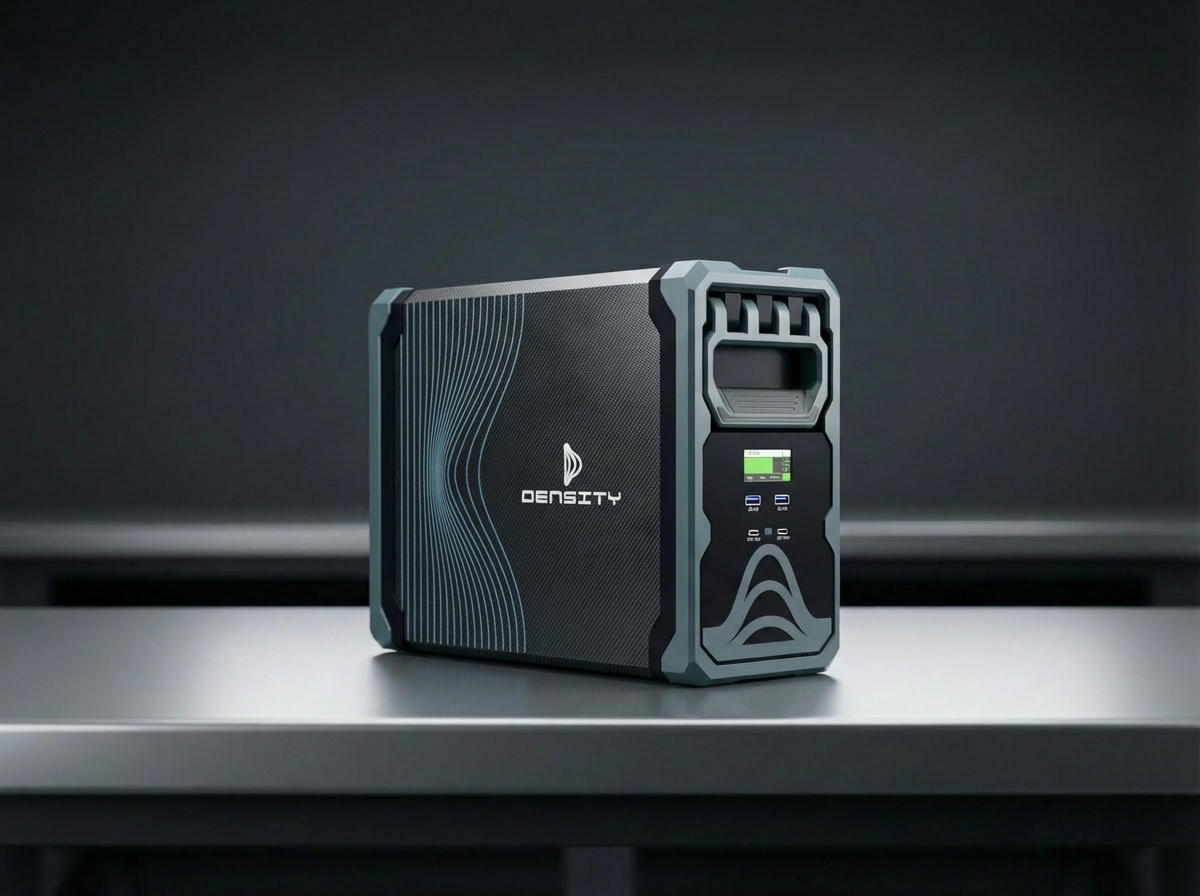

DENSITY X2 POWERNET VSHIFT 12/48V, 330Ah, 250A BMS, EV, MPPT, USB, DENSITY LINK

DENSITY^X2 POWERNET BATTERY is designed as the centre point of the PowerNet Eco-System with robust connectors and integrated charge intelligence and a high amperage EV port. Power your home, business, car, caravan, boat and more. PowerNet is not a battery, it's an energy asset to give you energy freedom wherever you go.

• 250A Continuous 48V Electric Vehicle Port
  For use with compatible Density approved electric vehicle applications, the EV port allows for 250A continous discharge to directly power up to 12kW electric motors. Batteries can be connected in series or parallel, with the use of a Density CAN module, as required for automotive, marine and industrial motion applications

• 5000W / 100A 48V output + input
  Using the AS150U plug, allows connectivity with 48V inverters for up to 5000W continuous power, like the Density Genset Case. Also charge your battery with a compatible charger such as DBC-14S-600W. Also connect multiple batteries in parallel using this plug (batteries must be at the same state of charge when first connected together).

• VSHIFT 1200W / 100A 12V continuous output + input*
  Heavy-duty SB120 Anderson plug rated to carry the full 100A continuous discharge safely. 12V power for lighting, winches, fridges, pumps, or auxiliary DC buses. If *dual battery system control is disabled, the battery can also be charged at up to 100A via this plug, making it a bidirectional 12V system.

• Dual Battery System Control
  When enabled via the Density Link touchscreen interface, the 12V anderson plug is set to discharge mode only. This ensures your Density battery will power connected loads and devices without drawing power from a starter battery. In this configuration, the dedicated charging port, or 48V port, provide two convenient options.

• 13-60V Charging Port
  Dedicated charging port to allow alternator, solar MPPT, or battery chargers for safe charging of your Density battery. When a solar panel is connected, the MPPT tracks maximum power point dynamically for efficient charging in real-world conditions (shade, variable panel voltages).

• Easy device charging
  Front panel mounted USB C & USB A ports to conveniently charge all your devices. 2x 100W Type C PD3.0 plus 2x Type A for up to 240W of simultaneous charging from laptops to phones to drones.

• Density Link ready
  Via the bright easy to use integrated touchscreen, or the Density Link bluetooth app, stay connected to all your battery health information. Also control the charging and discharging functionality in the dual battery system settings..


Key Features

• Nominal voltage: NOMINAL 48V
• Energy: 4096 Wh
• Capacity: 76000mAh, equivalent to 330aH at 12V
• Configuration: 14S internal
• USB Power: 100W Type C x 2 + Type A x 2
• Ingress rating: IP65

• Safer than LFP/AGM lower fire risk, stable at low temperatures
• Carbon fibre composite space case

• Dual integrated carry handles

Specifications

Example Applications

• Direct replacement for AGM/LFP in all vehicle types
• Super compact and lightweight for 4x4's, camper trailers. No need for a dual battery system.
• Parallel multiple batteries in larger applications such as Caravans
• Dual voltage; Run 48V inverters for cooking & heating plus 12V devices such as fridges, winches, pumps, radios and lights - all at the same time
• For marine applications it's perfect for trolling motors, bilge pumps, nav systems.

• Convenient USB device power & integrated solar charging.

System Integration & Wiring

• Use correct cable gauge; fuse positive lead.
• Maintain polarity and strain relief.

Charging & Care

• Store 40-60% SoC if unused.
• Allow airflow during charge/discharge.
• Use PD rated cables for USB C.
• Check firmware/app for updates.

Safety & Compliance

• Chemistry is non flammable and stable at low temp.
• UN38.3, RCM certified
• Pack level protections: OVP/UVP/OCP/OTP.
• CAN protected 48V high power ports

Density products combine advanced solid state chemistry, intelligent integration, and rugged packaging to outperform legacy chemistries in every dimension safety, Wh/kg, cycle life, and system simplicity.
