Discharge Connector

XT90S

Density Link Ready

Yes

Size (mm) & Weight (kg)

161x 82 x 126 / 2.27

Recommended Charger

DBC-12S-600W-AU
SMART BATTERY ORDERS SHIP FROM JANUARY 2026

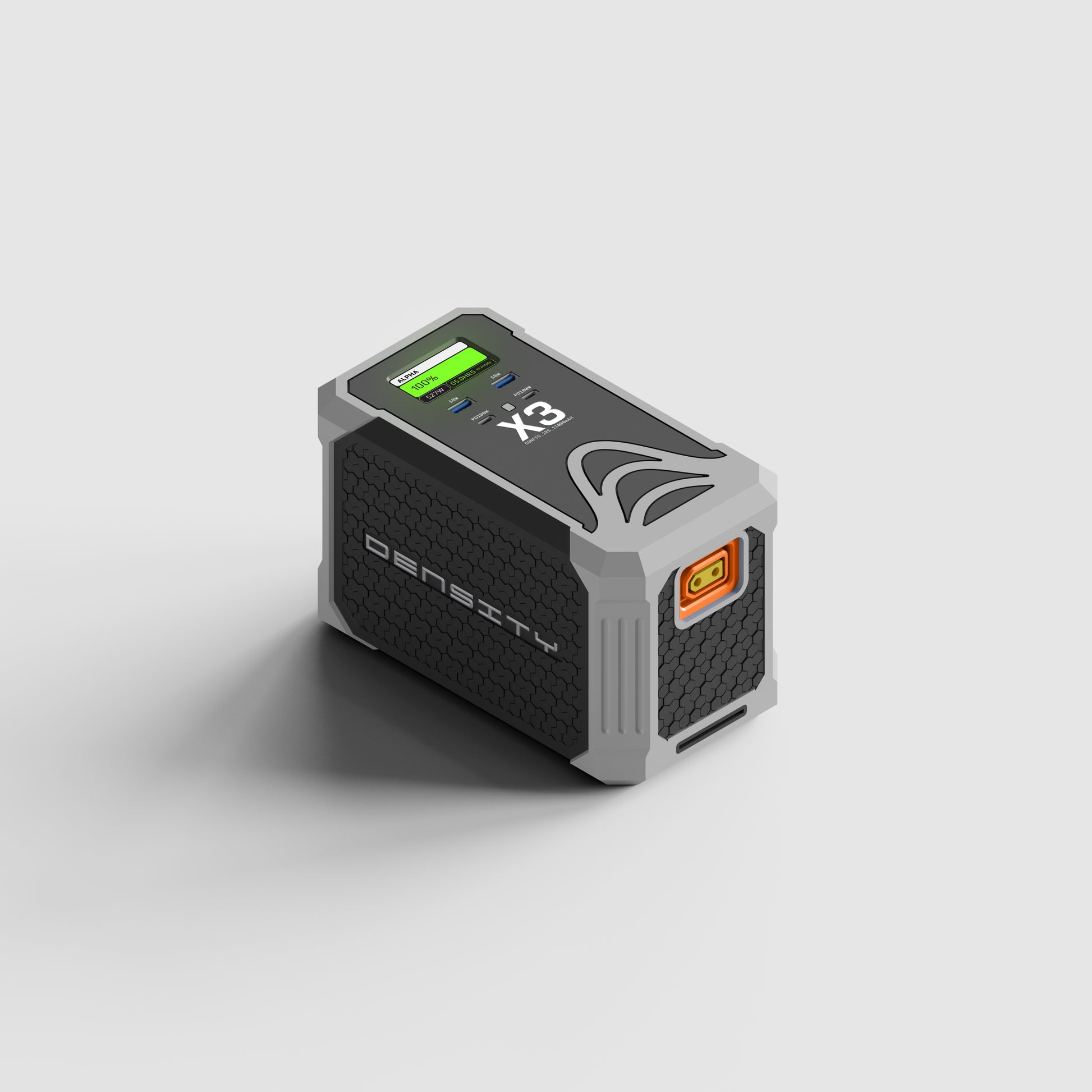

DENSITY X3 SMART BATTERY, 490wh, 100A BMS, 11000mAH, 12S, XT90S

SKU: DSB3-12S-11000-100B

$655.60 AUD
$655.60 AUD
Shipping calculated at checkout.

DENSITYX3 SMART BATTERY, 490wh, 100A BMS, 11000mAH, 12S, XT90S is part of the Density Link App ecosystem. It delivers solid state safety, high Wh/kg, exceptional low temperature performance and a very high discharge rate.

Key Features

  • Nominal voltage: NOMINAL: 44.4V (33V - 50.4V)
  • Energy: 490.0 Wh
  • Capacity: 11000.0 mAh
  • Configuration: 12S
  • USB Power: 100W Type C x 2 + Type A x 2
  • Ingress rating: IP65
  • Advanced solid state lithium chemistry
  • Safer than LiPo/LFP/NMC lower fire risk, stable at low temp
  • Carbon reinforced printed enclosure with soft over mold
  • Compatible with Density chargers, cables, connectors

Specifications

Nominal voltage NOMINAL: 44.4V (33V - 50.4V)
Energy 490.0 Wh
Capacity 11000.0 mAh
Configuration 12S
USB Power Yes
Recommended Charger Density Battery Charger-12S-600W-AU
Ingress IP65
Chemistry Advanced solid state lithium
Continuous Output 55.0 A
Peak Output 100.0 A
Recommended Charge Rate 11.0 A
Power Connector XT90S
Voltage Window NOMINAL: 44.4V (33V - 50.4V)

Example Applications

  • UAVs: endurance drones, VTOL with per cell monitoring.
  • E mobility: e bikes, scooters, skateboards, compact EVs.
  • Marine: trolling motors, nav gear, bilge.
  • Robotics: AMRs, AGVs, crawlers with telemetry backhaul.
  • Industrial: SCADA/PLC backup, mining telemetry.
  • Cinematography: cameras, gimbals, LED rigs.
  • Medical/Emergency: field hospitals, comms in disaster zones.

System Integration & Wiring

  • Use correct cable gauge; fuse positive lead.
  • Maintain polarity and strain relief.
  • Observe charger compatibility

Charging & Care

  • Store 20-60% SoC if unused.
  • Allow airflow during charge/discharge.
  • Use PD rated cables for USB C.
  • Check firmware/app for updates.

Safety & Compliance

  • Chemistry is non flammable and stable at low temp.
  • IEC 62133-2, UN38.3, RCM standards compliance (per model).
  • Pack level protections: OVP/UVP/OCP/OTP.

Density products combine advanced solid state chemistry, intelligent integration, and rugged packaging to outperform legacy chemistries in every dimension safety, Wh/kg, cycle life, and system simplicity.

Connectors

  • Charge: XT90S
  • Discharge: XT90S

Advanced Safety (BMS Protected)

Built in battery management monitors voltage, temperature, and current in real time, balancing cells and preventing overcharge, over discharge, and short circuits. Failsafes protect devices and people during demanding conditions.

Intuitive Touch Display

Bright integrated touchscreen delivers status and control: state of charge, voltage, power, and alerts. Choose charge profiles, storage mode, and outputs. Glove friendly interface streamlines field use and reduces mistakes.

Density Link Smart Connectivity

Built in Bluetooth links to app for live telemetry, firmware updates, and alerts. View state of charge, cycles, temperature, and health. Share diagnostics with support and enable fleet pairing remotely. Also you can name your battery!

Custom Service

Need a custom pack? We design to voltage, capacity, connectors, and enclosure constraints. Options include rugged housings, interfaces, CAN communication, and mounting hardware. Need 1 or 100,000, get in touch now with our Melbourne based team.
Conact Us for a reply within 1 business day
BMS Safe
Touchscreen
Bluetooth
Customize

Density Link App - Available Dec 2025

Logistic Automation

Density solid-state batteries transform logistics and automation by keeping AGVs and robots working longer with less downtime. Their ultra-fast charging, high energy density, and long cycle life boost ROI and efficiency. By reducing idle time and enabling smaller, more capable fleets, Density delivers huge operational savings and superior productivity.

RC Cars

Density solid-state batteries deliver unmatched power, safety, and endurance for RC and hobby enthusiasts. With extreme energy density, minimal weight, and superior cycle life, they redefine performance in drones, cars, and aircraft. Compact, durable, and fast-charging, Density ensures longer runs, higher thrust, and zero swelling—perfect for serious builders and tinkerers.
RC car racing in the desert, motion blur, huge dust cloud off the wheels, going super fast, hazy air, car about 20% of the image so zoomed out maybe going up a sand dune

Agricultural Drones

Density solid-state batteries revolutionize agriculture, cinematography and transport. With rugged construction, high discharge rates, and extreme energy density, they deliver dependable power in the harshest environments. Lightweight and maintenance-free, Density enables longer run time, reduced downtime, and unmatched reliability.

Power that moves with you

Density solid-state batteries power the next generation of automotive, van life, and 4x4 adventures. Offering massive power in a lightweight, compact form, they deliver longer range, faster charging, and superior safety. Perfect for overlanding rigs and off-grid setups, Density packs provide reliable, high-output energy wherever the journey takes you.
