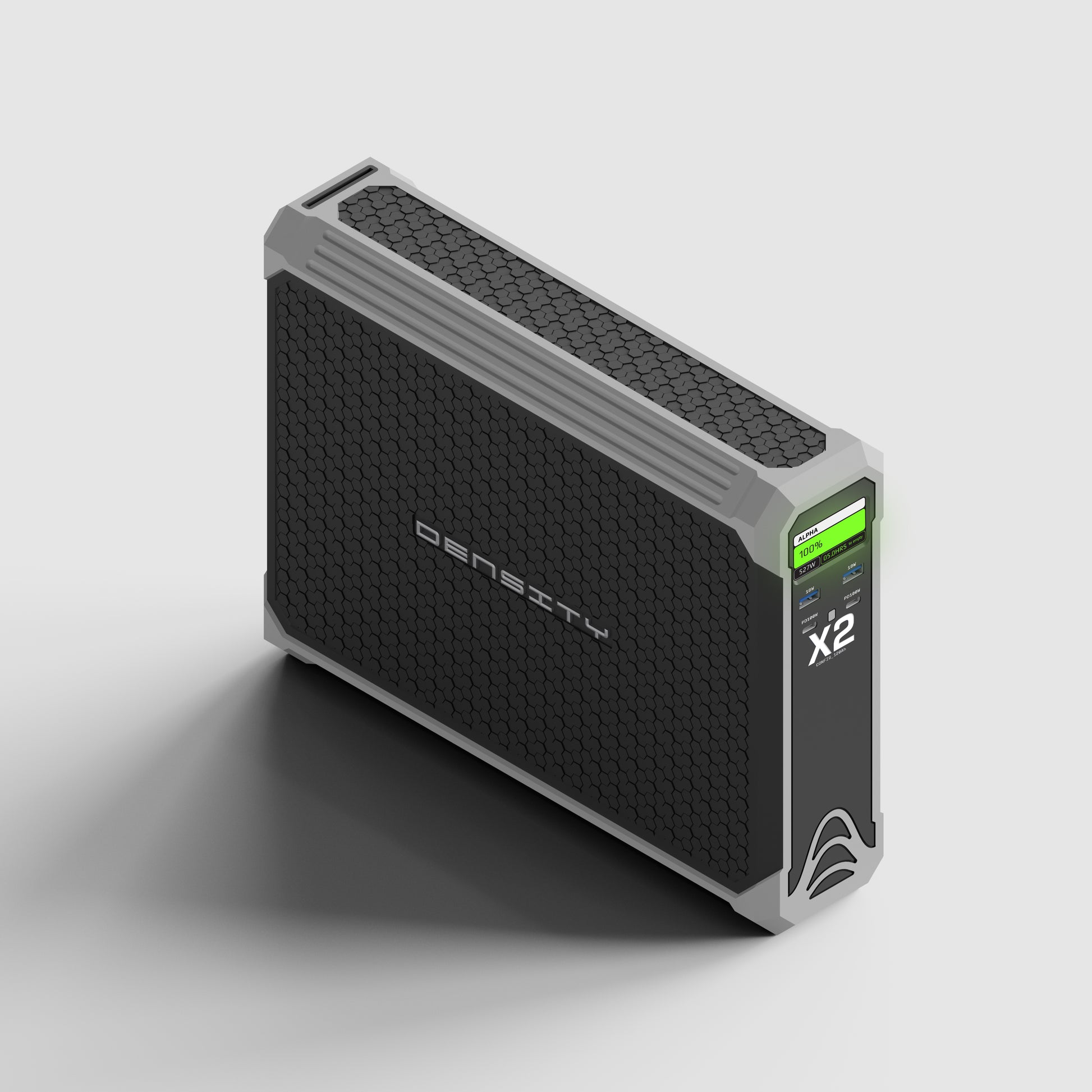

DENSITY X2 POWERDRIVE VSHIFT 12/48V, 130AH, 100A BMS, MPPT, USB, DENSITY LINK

DENSITY^X2 POWERDRIVE AUTO/MARINE BATTERY, VSHIFT Dual Voltage 48V and 12V, Dual Battery System, Solar Charging, is part of the Density PowerDrive product family. Featuring X2 energy density, long cycle life, low temperature performance. Dual voltage flexibility and smart charging options via the inbuilt 13-60V Maximum Power Point Tracking (MPPT) for great discharge capacity.

The battery is designed for automotive, recreational & marine applications with robust connectors and integrated charge intelligence:

• 3600W / 60A 48V output + input
  Using the AS150U plug, access the batteries high power interface. Allows connectivity with 48V inverters for up to 3600W continuous power. Also charge your battery with a compatible charger such as DBC-14S-600W. Also connect multiple batteries in parallel using this plug (batteries must be at the same state of charge when first connected together).

• VSHIFT 1200W / 100A 12V continuous output + input*
  Heavy-duty SB120 Anderson plug rated to carry the full 100A continuous discharge safely. 12V power for lighting, winches, fridges, pumps, or auxiliary DC buses. If *dual battery system control is disabled, the battery can also be charged at up to 100A via this plug, making it a bidirectional 12V system.

• Dual Battery System Control
  When enabled via the Density Link touchscreen interface, the 12V anderson plug is set to discharge mode only. This ensures your Density battery will power connected loads and devices without drawing power from a starter battery. In this configuration, the dedicated charging port, or 48V port, provide two convenient options.

• 13-60V Charging Port
  Dedicated charging port to allow alternator, solar MPPT, or battery chargers for safe charging of your Density battery. When a solar panel is connected, the MPPT tracks maximum power point dynamically for efficient charging in real-world conditions (shade, variable panel voltages).

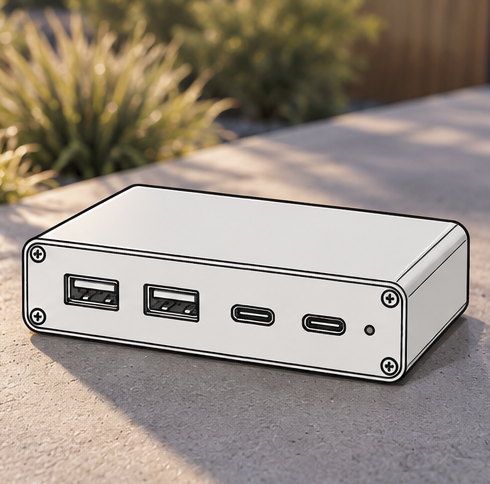

• Easy device charging
  Front panel mounted USB C & USB A ports to conveniently charge all your devices. 2x 100W Type C PD3.0 plus 2x Type A for up to 240W of simultaneous charging from laptops to phones to drones.

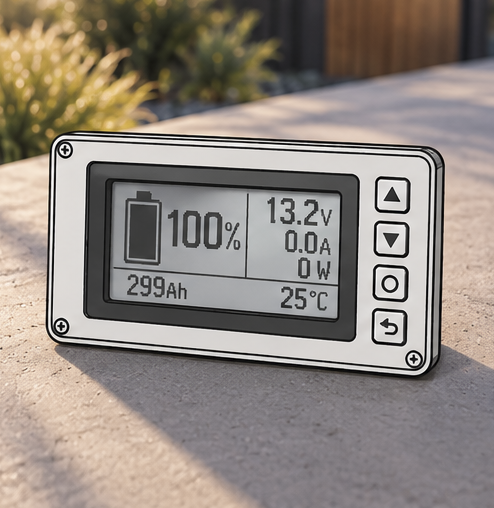

• Density Link ready
  Via the bright easy to use integrated touchscreen, or the Density Link bluetooth app, stay connected to all your battery health information. Also control the charging and discharging functionality in the dual battery system settings..

Key Specifications

Example Applications

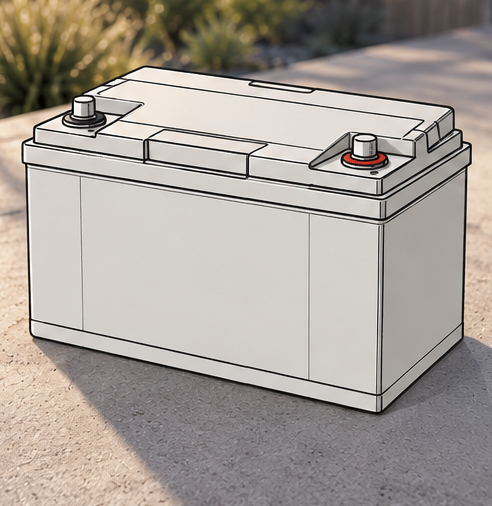

• Direct replacement for AGM/LFP in all vehicle types
• Super compact and lightweight for 4x4's, camper trailers. No need for a dual battery system.
• Parallel multiple batteries in larger applications such as Caravans
• Dual voltage; Run 48V inverters for cooking & heating plus 12V devices such as fridges, winches, pumps, radios and lights - all at the same time
• For marine applications it's perfect for trolling motors, bilge pumps, nav systems.

• Convenient USB device power & integrated solar charging.

System Integration & Wiring

• Use correct cable gauge; fuse positive lead.
• Maintain polarity and strain relief.

Charging & Care

• Store 40-60% SoC if unused at 15-25 degrees celcius
• Recommended Operating Temperature: -20 to 50 degrees celcius
• Allow airflow during charge/discharge.
• Use PD rated cables for USB C.
• Check firmware/app for updates.
• Never connect batteries in parallel which are at different states of charge.  Recommend to charge all batteries to 52V via the 48V AS150 connector before connecting parallel systems. This an be achieved with an AC charger such as Density charger DBC-14S-600W-AU or equivalent.

Safety & Compliance

• Chemistry is low flammable and stable at low temp.
• UN38.3, RCM compliance
• Pack level protections: OVP/UVP/OCP/OTP.
• CAN protected 48V high power port

Detailed Specifications

• 48V system: 51.8V Nominal (38.5V - 58.8V), CC/CV 58.8V cutoff, 30A Charge, 60A Discharge
• 12V system: Continious Bi-Directional 12V. Max 100A / 1200W charge/discharge power. Note if dual battery system mode is activated, charging via the 12V anderson plug is disabled.
• MPPT: 13-60V, max 500W

• USB Type C, 2 x 100W discharge only
• USB Type A, 2 x 18W discharge only
• Bluetooth connectivity via Density Link Google or Apple app.


Density products combine advanced solid state chemistry, intelligent integration, and rugged packaging to outperform legacy chemistries in every dimension safety, Wh/kg, cycle life, and system simplicity.
